CD-ROM 2.54mm 2P straight H=13.5 PBT Black gold flash Bag packing ROHS

Product Categories
WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now

CD-ROM 2.54mm 2P straight H=13.5 PBT Black gold flash Bag packing ROHS

Brand Name : WCON

Model Number : WF2542-WS02B01

Certification : UL/SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Payment Terms : T/T

Supply Ability : 800000PCS

Delivery Time : 15~25Day

Packaging Details : Tray

Type : Straight

purpose : Signal transmission

Color : black

Pins : 2-12P

pith : 2.54mm

port : hong kong

currency : HKD or USD or EURO

plastic : PBT

Contact Now

CD-ROM 2.54mm 2P straight H=13.5 PBT Black gold flash Bag packing ROHS.

Rated Current 3.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 1000V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣45℃ to +105℃
Pin Material Brass
Contact Plating Au Sn over Ni
Insulator Material Polyester(UL94V-0)
Standard PBT Or PA6T

1.How to install the machinery?
Please refer to our catalog, drawing and specification...
2.what's the lead time?
Normally around 4~5 weeks, once received customer formal purchase orders.

CD-ROM 2.54mm 2P straight H=13.5 PBT Black gold flash Bag packing ROHS

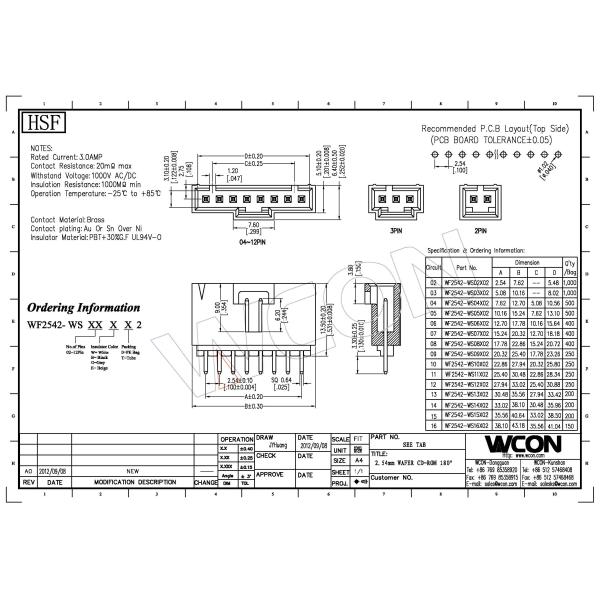

CD-ROM 2.54mm 2P straight H=13.5 PBT Black gold flash Bag packing ROHSWF2542-WSXXXX2.pdf
